Description
Looking for an E-Clip for your 3Racing Mchassis? These are the babies.

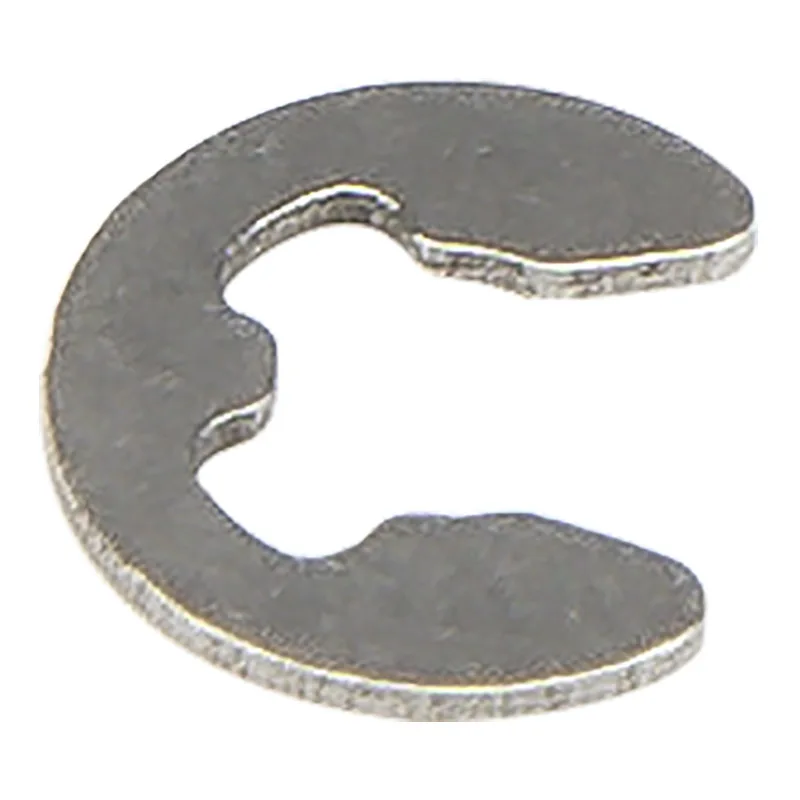

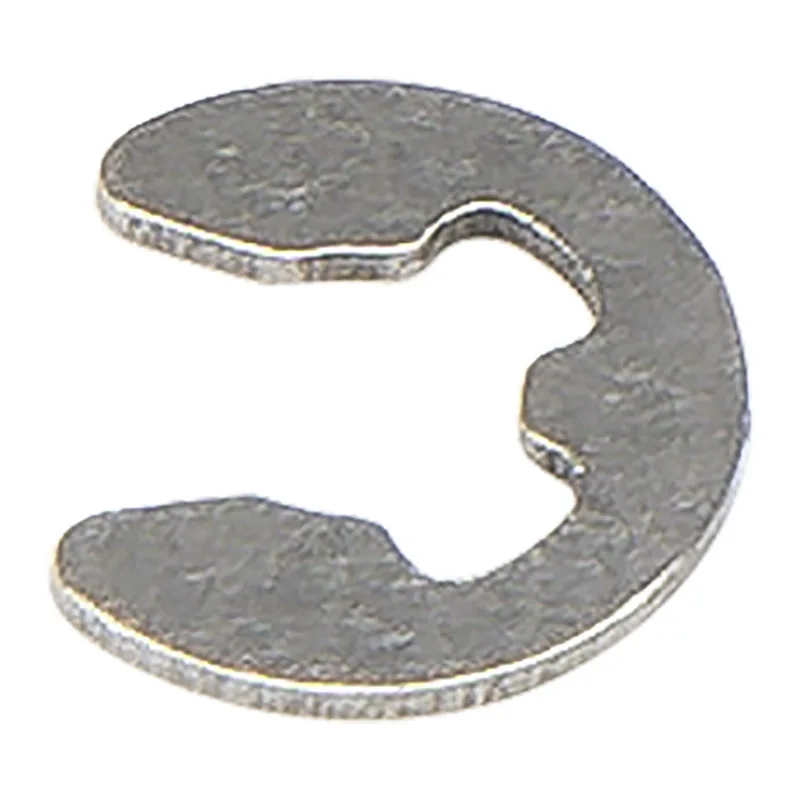

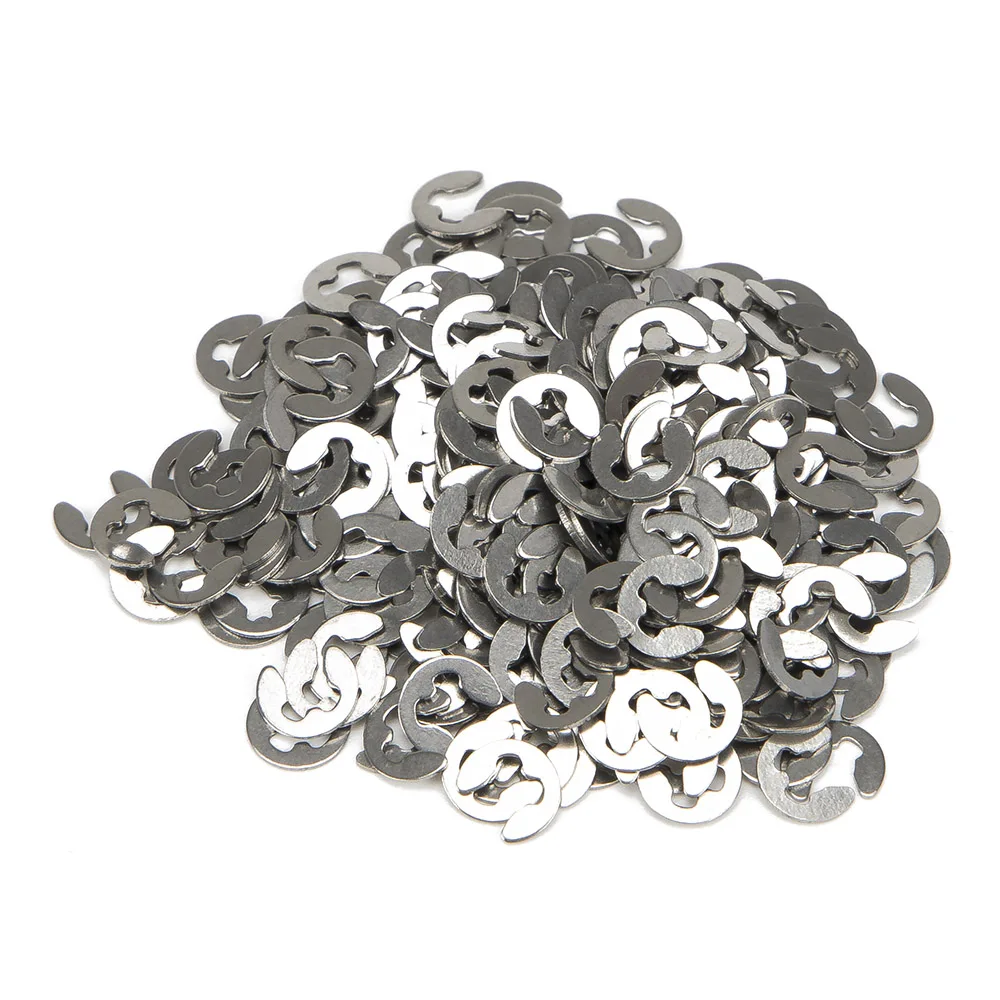

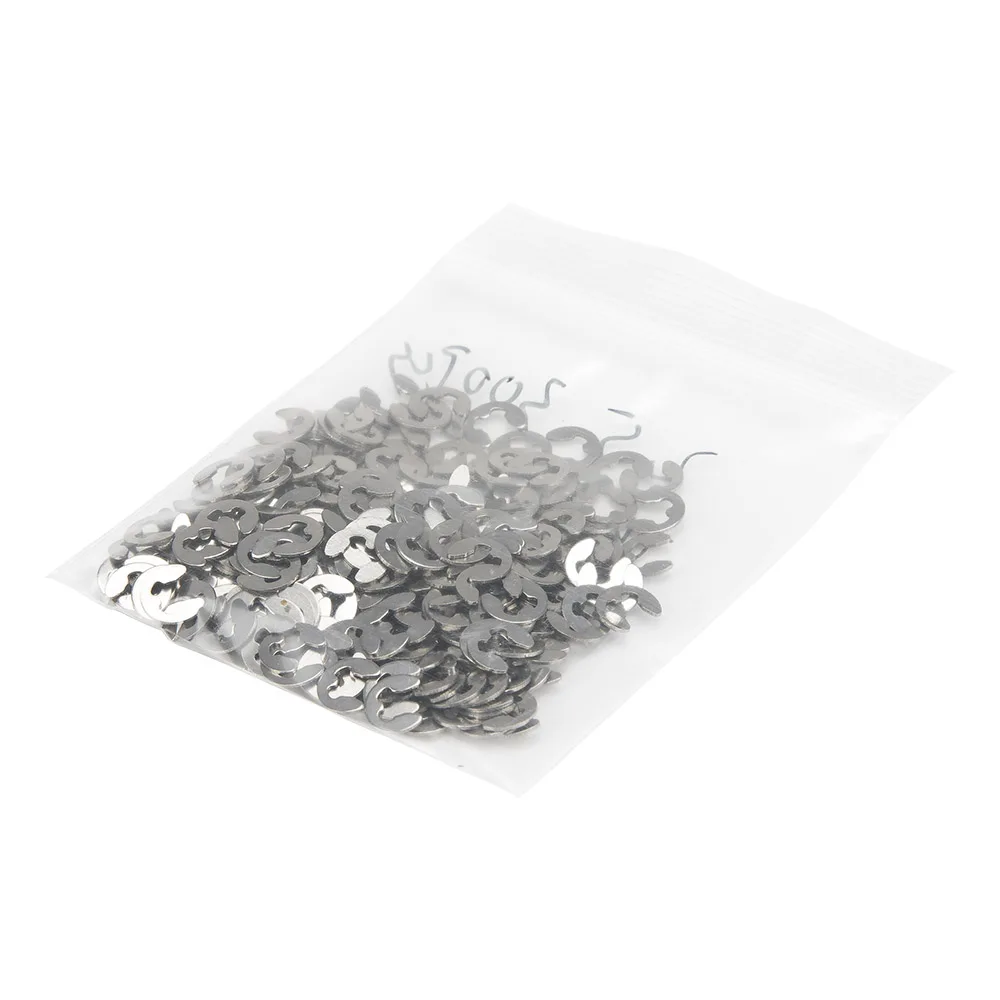

FCCE01 304 stainless steel E circlip
▇ Model number and parameters (Unit: mm)
| Model number | Nominal diameter (d) | B | S | D max | d/2 | m | n (min) | d/0 | Related product |
| FCCE01-1.2 | 1.2 | 0.9 | 0.3 | 3 | 1.2 | 0.4 | 1 | >1.5-2 | Visiting… |
| FCCE01-1.5 | 1.5 | 1.2 | 0.4 | 4 | 1.5 | 0.5 | 1 | >2-2.5 | Visiting… |
| FCCE01-2 | 2 | 1.7 | 0.4 | 5 | 2 | 0.5 | 1.2 | >2.5-3 | Visiting… |
| FCCE01-2.5 | 2.5 | 2.2 | 0.4 | 6 | 2.5 | 0.5 | 1.2 | >3-3.5 | Visiting… |
| FCCE01-3 | 3 | 2.5 | 0.5 | 7 | 3 | 0.7 | 1.2 | >3.5-4 | Order |
| FCCE01-3.5 | 3.5 | 3 | 0.5 | 8 | 3.5 | 0.7 | 1.5 | >4-5 | Order |
| FCCE01-4 | 4 | 3.5 | 0.7 | 9 | 4 | 0.9 | 1.5 | >5-6 | Order |
| FCCE01-5 | 5 | 4.5 | 0.8 | 10 | 5 | 0.9 | 1.5 | >6-7 | Order |
| FCCE01-6 | 6 | 5.5 | 1 | 12 | 6 | 1.1 | 1.5 | >7-9 | Order |
| FCCE01-7 | 7 | 1 | 14 | 7 | Order | ||||
| FCCE01-8 | 8 | 7.5 | 1 | 16 | 8 | 1.1 | 1.8 | >9-10 | Order |
| FCCE01-9 | 9 | 8 | 1 | 18 | 9 | 1.1 | 2 | >10-13 | Order |
| FCCE01-10 | 10 | 1 | 20 | 10 | Order | ||||
| FCCE01-11 | 11 | 1 | 21 | Order | |||||
| FCCE01-12 | 12 | 10.5 | 1.2 | 24 | 12 | 1.3 | 2.5 | >13-16 | Order |
| FCCE01-13 | 13 | 1.2 | 24 | Order | |||||
| FCCE01-14 | 14 | Order | |||||||
| FCCE01-15 | 15 | 13 | 1.5 | 30 | 15 | 1.6 | 3 | >16-20 | Order |
| FCCE01-16 | 16 | 1.5 | 32 | 16 | Order | ||||
| FCCE01-17 | 17 | ||||||||
| FCCE01-18 | 18 | ||||||||
| FCCE01-19 | 19 | ||||||||
| FCCE01-20 | 20 | 1.5 | 40 | 20 | Order |
▇ General
| Model number | FCCE01 series |
| Name | E circlip |
| Material | 304 stainless steel |
| Superficial treatment | None |
| Standard | GB/T 896-1986 |
| Dimension | You can select it by the nominal diameter |
| Alias name | FCCE01 304 stainless steel E clip |
